利用Python调试串口的示例代码

import serial  # 串口通信核心库
import serial.tools.list_ports  # 串口设备枚举
import threading  # 多线程处理
import queue  # 线程安全队列
import ttkbootstrap as ttk  # 现代化ui框架
from tkinter import filedialog  # 文件对话框

# 必需库安装
pip install pyserial ttkbootstrap

def open_serial(self):
    # 参数映射转换
    parity_map = {
        'none': serial.parity_none,
        'even': serial.parity_even,
        # ...其他校验位映射
    }

    self.serial_port = serial.serial(
        port=self.port_cb.get(),
        baudrate=int(self.baudrate_cb.get()),
        parity=parity_map[self.parity_cb.get()],
        timeout=0.1  # 非阻塞读取
    )

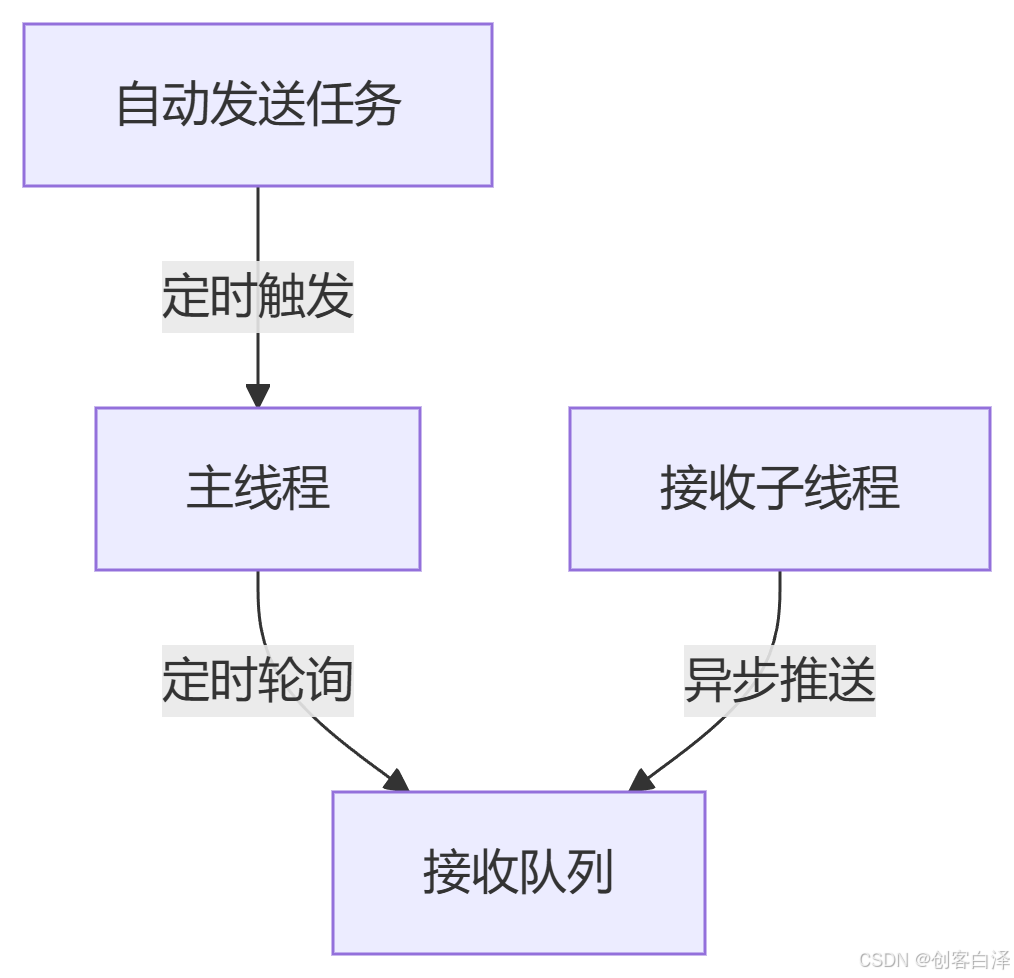

def receive_worker(self):
    while not self.receive_thread_event.is_set():
        try:
            # 非阻塞读取
            if self.serial_port.in_waiting > 0:
                data = self.serial_port.read(self.serial_port.in_waiting)
                self.receive_queue.put(data)
        except serial.serialexception:
            break

def auto_send_task(self):
    if self.auto_send_flag:
        try:
            interval = int(self.interval_entry.get())
            self.send_data()  # 执行发送
            self.master.after(interval, self.auto_send_task)  # 定时循环
        except valueerror:
            self.auto_var.set(false)

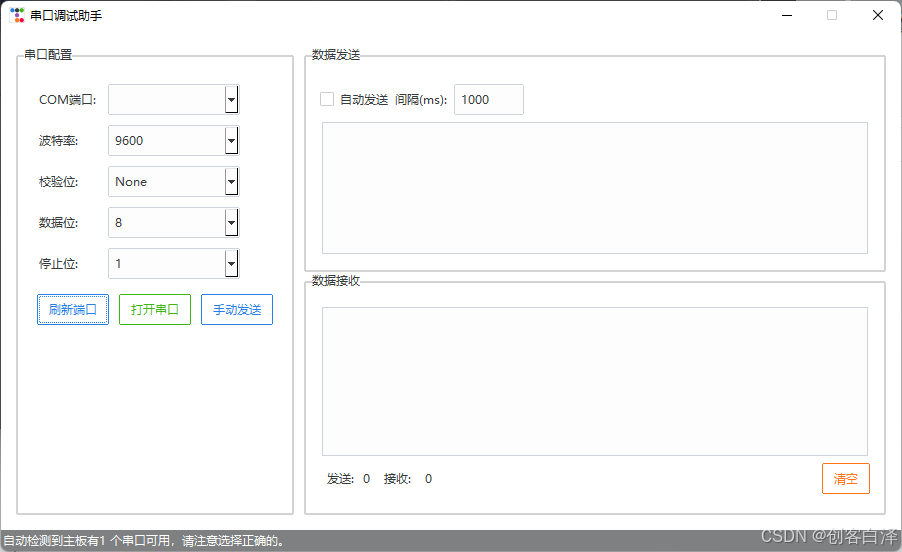

main_frame = ttk.frame(self.master)
left_frame = ttk.labelframe(main_frame, text="串口配置")  # 左侧配置区
send_frame = ttk.labelframe(right_frame, text="数据发送")  # 右上发送区
recv_frame = ttk.labelframe(right_frame, text="数据接收")  # 右下接收区

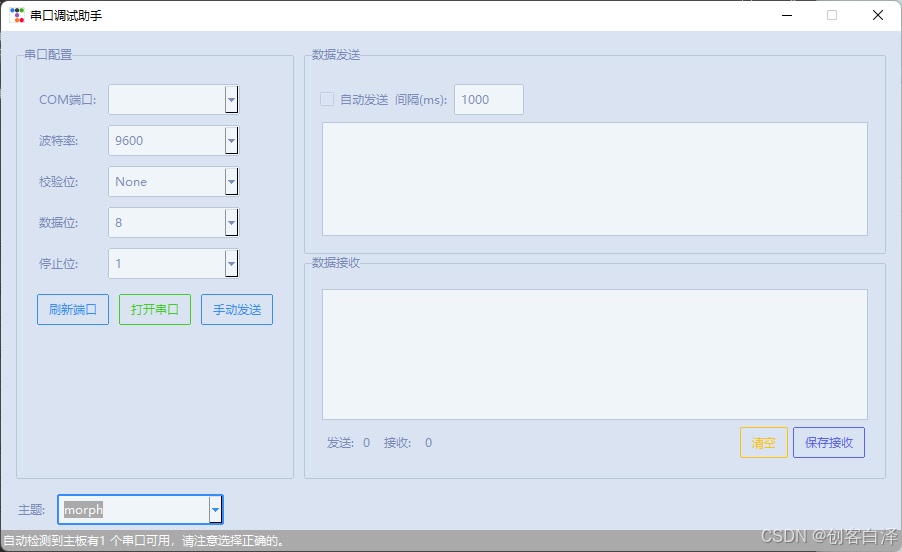

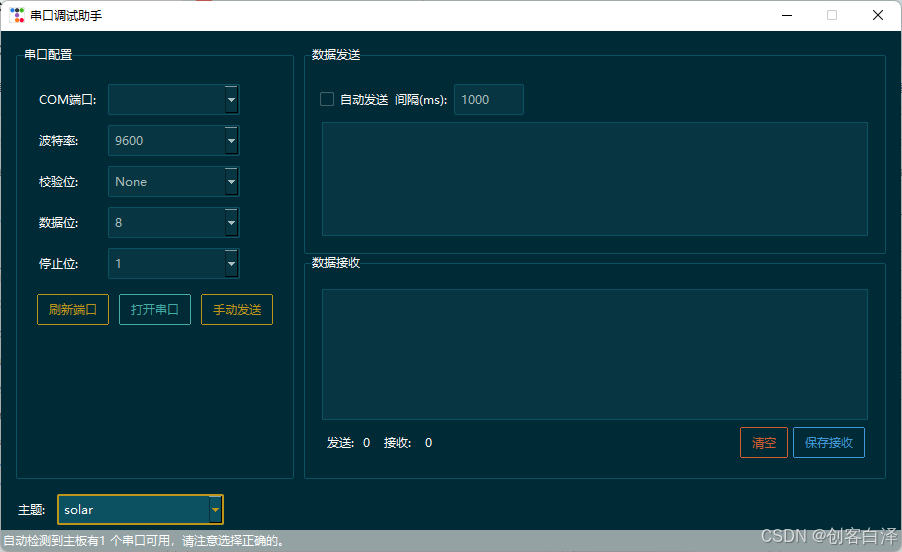

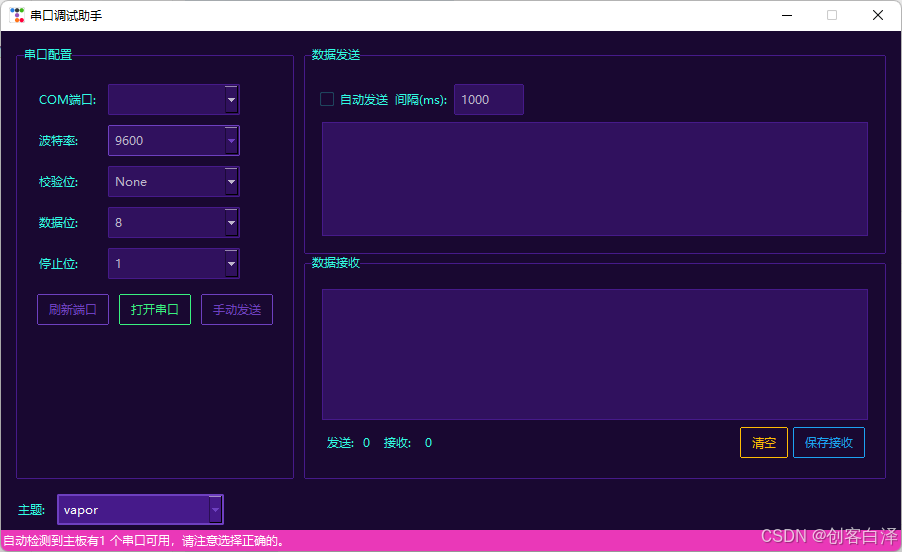

def change_theme(self):
    selected_theme = self.theme_cb.get()
    self.style.theme_use(selected_theme)  # 动态切换主题

import serial
import serial.tools.list_ports
import threading
import queue
import os
import time
import ttkbootstrap as ttk
from ttkbootstrap.constants import *
from ttkbootstrap.dialogs import messagebox
from ttkbootstrap.scrolled import scrolledtext
from tkinter import booleanvar, stringvar, intvar
import platform
from tkinter import filedialog
import json


class serialtool:
    def __init__(self, master):
        self.master = master
        self.master.title("串口调试助手")
        self.master.geometry("900x520")
        self.master.resizable(false, false)  # 禁止调整窗口大小
        self.master.update()  # 强制应用尺寸限制

        # 初始化样式
        self.style = ttk.style(theme='cosmo')
        # 配置边框线为纯黑色的样式
        self.style.configure('blackborder.tlabelframe', bordercolor='#d3d3d3', relief='solid', borderwidth=1)

        # 串口参数
        self.serial_port = none
        self.receive_queue = queue.queue()
        self.auto_send_flag = false
        self.send_count = 0
        self.receive_count = 0
        self.receive_thread = none
        self.receive_thread_event = threading.event()  # 用于控制接收线程的事件

        # 发送历史记录
        self.send_history = []
        self.history_index = -1

        # 自动检测串口变化
        self.last_port_count = 0

        # 创建界面
        self.create_widgets()
        self.refresh_ports()
        self.master.after(100, self.process_queue)
        self.check_ports_change()  # 开始检测串口变化

    def create_widgets(self):
        """创建三栏式布局"""
        main_frame = ttk.frame(self.master)
        main_frame.pack(fill=both, expand=true, padx=10, pady=10)

        # 主题切换控件
        theme_frame = ttk.frame(self.master)
        theme_frame.pack(fill=x, padx=10, pady=(0, 5))

        ttk.label(theme_frame, text="主题:").pack(side=left, padx=5)
        self.theme_cb = ttk.combobox(
            theme_frame,
            values=sorted(ttk.style().theme_names()),
            state='readonly'
        )
        self.theme_cb.pack(side=left, padx=5)
        self.theme_cb.set('cosmo')
        self.theme_cb.bind('<<comboboxselected>>', self.change_theme)

        # 左侧串口配置区
        left_frame = ttk.labelframe(main_frame, text="串口配置", padding=15, style='blackborder.tlabelframe')
        left_frame.grid(row=0, column=0, sticky=nsew, padx=5, pady=5)

        # 右侧上下分区
        right_frame = ttk.frame(main_frame)
        right_frame.grid(row=0, column=1, sticky=nsew, padx=5, pady=5)

        # 发送区（右上）
        send_frame = ttk.labelframe(right_frame, text="数据发送", padding=15, style='blackborder.tlabelframe')
        send_frame.pack(fill=both, expand=true, side=top)

        # 接收区（右下）
        recv_frame = ttk.labelframe(right_frame, text="数据接收", padding=15, style='blackborder.tlabelframe')
        recv_frame.pack(fill=both, expand=true, side=top)

        # 配置网格权重
        main_frame.columnconfigure(1, weight=1)
        main_frame.rowconfigure(0, weight=1)
        right_frame.rowconfigure(1, weight=1)

        # 创建各区域组件
        self.create_serial_controls(left_frame)
        self.create_send_controls(send_frame)
        self.create_recv_controls(recv_frame)

        # 状态栏
        self.status_var = stringvar(value="就绪")
        ttk.label(self.master, textvariable=self.status_var,
                  bootstyle=(secondary, inverse)).pack(fill=x, side=bottom)

    def change_theme(self, event=none):
        """切换主题"""
        selected_theme = self.theme_cb.get()
        self.style.theme_use(selected_theme)

    def create_serial_controls(self, parent):
        """串口参数控件"""
        param_frame = ttk.frame(parent)
        param_frame.pack(fill=x)

        # 串口号
        ttk.label(param_frame, text="com端口:").grid(row=0, column=0, padx=5, pady=5, sticky=w)
        self.port_cb = ttk.combobox(param_frame, width=15)
        self.port_cb.grid(row=0, column=1, padx=5, pady=5)

        # 波特率
        ttk.label(param_frame, text="波特率:").grid(row=1, column=0, padx=5, pady=5, sticky=w)
        self.baudrate_cb = ttk.combobox(param_frame, values=[
            '9600', '115200', '57600', '38400',
            '19200', '14400', '4800', '2400', '1200'
        ], width=15)
        self.baudrate_cb.set('9600')
        self.baudrate_cb.grid(row=1, column=1, padx=5, pady=5)

        # 校验位
        ttk.label(param_frame, text="校验位:").grid(row=2, column=0, padx=5, pady=5, sticky=w)
        self.parity_cb = ttk.combobox(param_frame, values=[
            'none', 'even', 'odd', 'mark', 'space'
        ], width=15)
        self.parity_cb.set('none')
        self.parity_cb.grid(row=2, column=1, padx=5, pady=5)

        # 数据位
        ttk.label(param_frame, text="数据位:").grid(row=3, column=0, padx=5, pady=5, sticky=w)
        self.databits_cb = ttk.combobox(param_frame, values=['8', '7', '6', '5'], width=15)
        self.databits_cb.set('8')
        self.databits_cb.grid(row=3, column=1, padx=5, pady=5)

        # 停止位
        ttk.label(param_frame, text="停止位:").grid(row=4, column=0, padx=5, pady=5, sticky=w)
        self.stopbits_cb = ttk.combobox(param_frame, values=['1', '1.5', '2'], width=15)
        self.stopbits_cb.set('1')
        self.stopbits_cb.grid(row=4, column=1, padx=5, pady=5)

        # 操作按钮
        # 按钮容器
        btn_frame = ttk.frame(parent)
        btn_frame.pack(pady=10, fill=x)

        # 配置网格列权重实现自动伸缩
        btn_frame.columnconfigure((0, 1, 2), weight=1, uniform='btns')  # uniform 确保列宽一致

        # 刷新按钮
        ttk.button(
            btn_frame,
            text="刷新端口",
            command=self.refresh_ports,
            bootstyle=outline
        ).grid(row=0, column=0, padx=5, sticky="ew")

        # 连接按钮
        self.conn_btn = ttk.button(
            btn_frame,
            text="打开串口",
            command=self.toggle_connection,
            bootstyle=outline + success
        )
        self.conn_btn.grid(row=0, column=1, padx=5, sticky="ew")

        # 手动发送按钮（移动到此处）
        ttk.button(
            btn_frame,
            text="手动发送",
            command=self.send_data,
            bootstyle=outline + primary
        ).grid(row=0, column=2, padx=5, sticky="ew")

    def create_send_controls(self, parent):
        """发送区控件"""
        # 自动发送设置
        auto_frame = ttk.frame(parent)
        auto_frame.pack(fill=x, pady=5)

        self.auto_var = booleanvar()
        ttk.checkbutton(auto_frame, text="自动发送", variable=self.auto_var,
                        command=self.toggle_auto_send).pack(side=left)
        ttk.label(auto_frame, text="间隔(ms):").pack(side=left, padx=5)
        self.interval_entry = ttk.entry(auto_frame, width=8)
        self.interval_entry.insert(0, "1000")
        self.interval_entry.pack(side=left)

        # 发送内容
        self.send_text = scrolledtext(parent, height=4, autohide=true)
        self.send_text.pack(fill=both, expand=true)

        # 绑定上下箭头键用于历史记录导航
        self.send_text.bind("<up>", self.prev_history)
        self.send_text.bind("<down>", self.next_history)

    def create_recv_controls(self, parent):
        """接收区控件"""
        # 接收显示
        self.recv_text = scrolledtext(parent, height=5, autohide=true)
        self.recv_text.pack(fill=both, expand=true)

        # 统计栏
        stat_frame = ttk.frame(parent)
        stat_frame.pack(fill=x, pady=5)
        ttk.label(stat_frame, text="发送:").pack(side=left, padx=5)
        self.send_label = ttk.label(stat_frame, text="0")
        self.send_label.pack(side=left)
        ttk.label(stat_frame, text="接收:").pack(side=left, padx=10)
        self.recv_label = ttk.label(stat_frame, text="0")
        self.recv_label.pack(side=left)

        # 添加保存接收按钮
        ttk.button(stat_frame, text="保存接收", command=self.save_received,
                  bootstyle=outline + info).pack(side=right, padx=5)

        ttk.button(stat_frame, text="清空", command=self.clear_received,
                  bootstyle=outline + warning).pack(side=right)

    def refresh_ports(self):
        """刷新端口列表"""
        try:
            ports = [p.device for p in serial.tools.list_ports.comports()]
            self.port_cb['values'] = ports
            self.status_var.set(f"自动检测到主板有{len(ports)} 个串口可用，请注意选择正确的。")
            self.last_port_count = len(ports)
        except exception as e:
            print(f"error refreshing ports: {e}")
            self.status_var.set(f"刷新端口时出错: {e}")

    def check_ports_change(self):
        """检查串口变化"""
        current_count = len(list(serial.tools.list_ports.comports()))
        if current_count != self.last_port_count:
            self.refresh_ports()
        self.master.after(1000, self.check_ports_change)  # 每秒检查一次

    def toggle_connection(self):
        """切换连接状态"""
        if self.serial_port and self.serial_port.is_open:
            self.close_serial()
        else:
            self.open_serial()

    def open_serial(self):
        """打开串口"""
        try:
            port = self.port_cb.get()
            if not port:
                raise valueerror("请选择串口")

            parity_map = {
                'none': serial.parity_none,
                'even': serial.parity_even,
                'odd': serial.parity_odd,
                'mark': serial.parity_mark,
                'space': serial.parity_space
            }

            self.serial_port = serial.serial(
                port=port,
                baudrate=int(self.baudrate_cb.get()),
                parity=parity_map[self.parity_cb.get()],
                bytesize=int(self.databits_cb.get()),
                stopbits=float(self.stopbits_cb.get()),
                timeout=0.1
            )

            self.conn_btn.configure(text="关闭串口", bootstyle=outline + success)
            self.status_var.set(f"已连接 {port}")
            self.receive_thread_event.clear()  # 清除事件标志
            self.receive_thread = threading.thread(target=self.receive_worker, daemon=true)
            self.receive_thread.start()

        except exception as e:
            messagebox.show_error(f"主板上没有这个串口或你选的被测端口跟主板端口不对应，请在设备管理器中确认正确的端口: {str(e)}", "错误")
            self.status_var.set("连接失败")

    def close_serial(self):
        """关闭串口"""
        self.receive_thread_event.set()  # 设置事件标志，通知接收线程停止
        if self.receive_thread and self.receive_thread.is_alive():
            self.receive_thread.join()  # 等待接收线程结束

        if self.serial_port:
            try:
                self.serial_port.close()
            except exception as e:
                print(f"关闭串口时出错: {e}")

        self.conn_btn.configure(text="打开串口", bootstyle=danger)
        self.status_var.set("已断开连接")

    def receive_worker(self):
        """接收线程工作函数"""
        while not self.receive_thread_event.is_set() and self.serial_port and self.serial_port.is_open:
            try:
                if self.serial_port.in_waiting > 0:
                    data = self.serial_port.read(self.serial_port.in_waiting)
                    self.receive_queue.put(data)
            except exception as e:
                print(f"接收错误: {e}")
                break

    def process_queue(self):
        """处理接收队列"""
        while not self.receive_queue.empty():
            data = self.receive_queue.get()
            self.display_received(data)
            self.receive_count += len(data)
            self.recv_label.configure(text=str(self.receive_count))
        self.master.after(100, self.process_queue)

    def display_received(self, data):
        """显示接收数据（带时间戳）"""
        timestamp = time.strftime("[%y-%m-%d %h:%m:%s] ", time.localtime())
        try:
            text = data.decode('utf-8')
            self.recv_text.insert(end, timestamp + text + '\n')
            self.recv_text.see(end)
        except unicodedecodeerror:
            self.recv_text.insert(end, timestamp + data.hex(' ') + '\n')
            self.recv_text.see(end)

    def toggle_auto_send(self):
        """切换自动发送"""
        self.auto_send_flag = self.auto_var.get()
        if self.auto_send_flag:
            self.auto_send_task()

    def auto_send_task(self):
        """自动发送任务"""
        if self.auto_send_flag and self.serial_port and self.serial_port.is_open:
            try:
                interval = int(self.interval_entry.get())
                self.send_data()
                self.master.after(interval, self.auto_send_task)
            except valueerror:
                self.auto_var.set(false)
                messagebox.show_error("无效的间隔时间", "错误")

    def send_data(self):
        """发送数据"""
        if not self.serial_port or not self.serial_port.is_open:
            messagebox.show_warning("请先打开串口", "警告")
            return

        data = self.send_text.get(1.0, end).strip()
        if not data:
            return

        try:
            # 添加到历史记录
            if data and (not self.send_history or data != self.send_history[0]):
                self.send_history.insert(0, data)
                if len(self.send_history) > 20:  # 限制历史记录数量
                    self.send_history.pop()
                self.history_index = -1  # 重置历史索引

            self.serial_port.write(data.encode('utf-8'))
            self.send_count += len(data)
            self.send_label.configure(text=str(self.send_count))

            # 显示发送的数据（带时间戳）
            timestamp = time.strftime("[%y-%m-%d %h:%m:%s] ", time.localtime())
            self.recv_text.insert(end, f"{timestamp}[send] {data}\n")
            self.recv_text.see(end)
        except exception as e:
            messagebox.show_error(f"发送失败: {str(e)}", "错误")

    def prev_history(self, event):
        """上一条历史记录"""
        if self.send_history:
            if self.history_index < len(self.send_history) - 1:
                self.history_index += 1
                self.send_text.delete(1.0, end)
                self.send_text.insert(end, self.send_history[self.history_index])
        return "break"

    def next_history(self, event):
        """下一条历史记录"""
        if self.history_index > 0:
            self.history_index -= 1
            self.send_text.delete(1.0, end)
            self.send_text.insert(end, self.send_history[self.history_index])
        elif self.history_index == 0:
            self.history_index = -1
            self.send_text.delete(1.0, end)
        return "break"

    def save_received(self):
        """保存接收内容到文件"""
        filename = filedialog.asksaveasfilename(
            defaultextension=".txt",
            filetypes=[("text files", "*.txt"), ("all files", "*.*")]
        )
        if filename:
            try:
                with open(filename, 'w', encoding='utf-8') as f:
                    f.write(self.recv_text.get(1.0, end))
                self.status_var.set(f"接收内容已保存到 {filename}")
            except exception as e:
                messagebox.show_error(f"保存文件失败: {str(e)}", "错误")

    def clear_received(self):
        """清空接收区"""
        self.recv_text.delete(1.0, end)
        self.receive_count = 0
        self.recv_label.configure(text="0")
        self.send_text.delete(1.0, end)
        self.send_count = 0
        self.send_label.configure(text="0")

    def on_closing(self):
        """安全关闭程序"""
        # 停止自动发送循环
        self.auto_send_flag = false

        # 关闭串口连接
        self.close_serial()

        # 确保完全退出
        self.master.quit()  # 终止mainloop
        self.master.destroy()  # 销毁所有tkinter对象
        self.master.after(500, self.force_exit)  # 500ms后强制退出

    def force_exit(self):
        """最终退出保障"""
        import os
        os._exit(0)  # 强制终止进程


if __name__ == "__main__":
    root = ttk.window()
    app = serialtool(root)
    root.protocol("wm_delete_window", app.on_closing)
    root.mainloop()
